Monitors - Rotation speed
WD534400
| amount | price | discount |
|---|---|---|
| 1 | 199,00 € | – |
| 5 | 193,03 € | 3% / 5,97 € |
| 10 | 189,05 € | 5% / 9,95 € |
| 20 | 183,08 € | 8% / 15,92 € |
| 50 | 175,12 € | 12% / 23,88 € |
Available
Speed Monitor, 90x97x22 mm, 1–120,000 1/min, 230 V AC, 24 V DC, 2 change-over contacts, IP20, plastic, with start-up bypass, multifunction device, parameterization
Compare
Monitors - Rotation speed
Monitoring rotation speeds or rotating movements is necessary in many applications to ensure the proper operation of a system. Our rotation speed and standstill monitoring devices operate according to various functional principles: 1. Monitoring pulses from a transducer; 2. Measuring the frequency of the supply current using a current transformer. Depending on the model, our devices offer a wide range of functions. For further evaluation in a higher-level control (unit), the results are output, e.g. as a simple relay contact (over/underspeed) or as an analog output signal resolved to the set speed range.

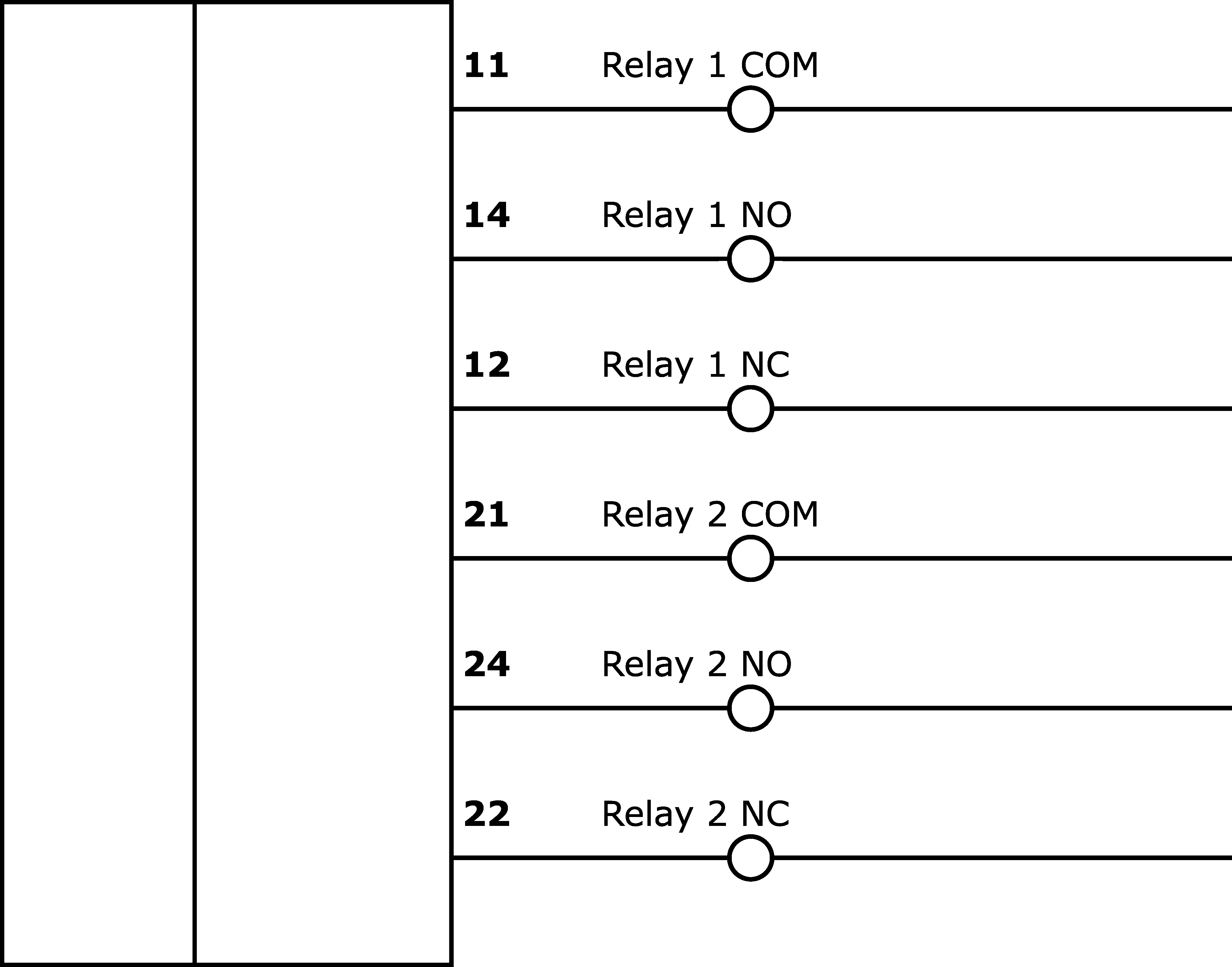

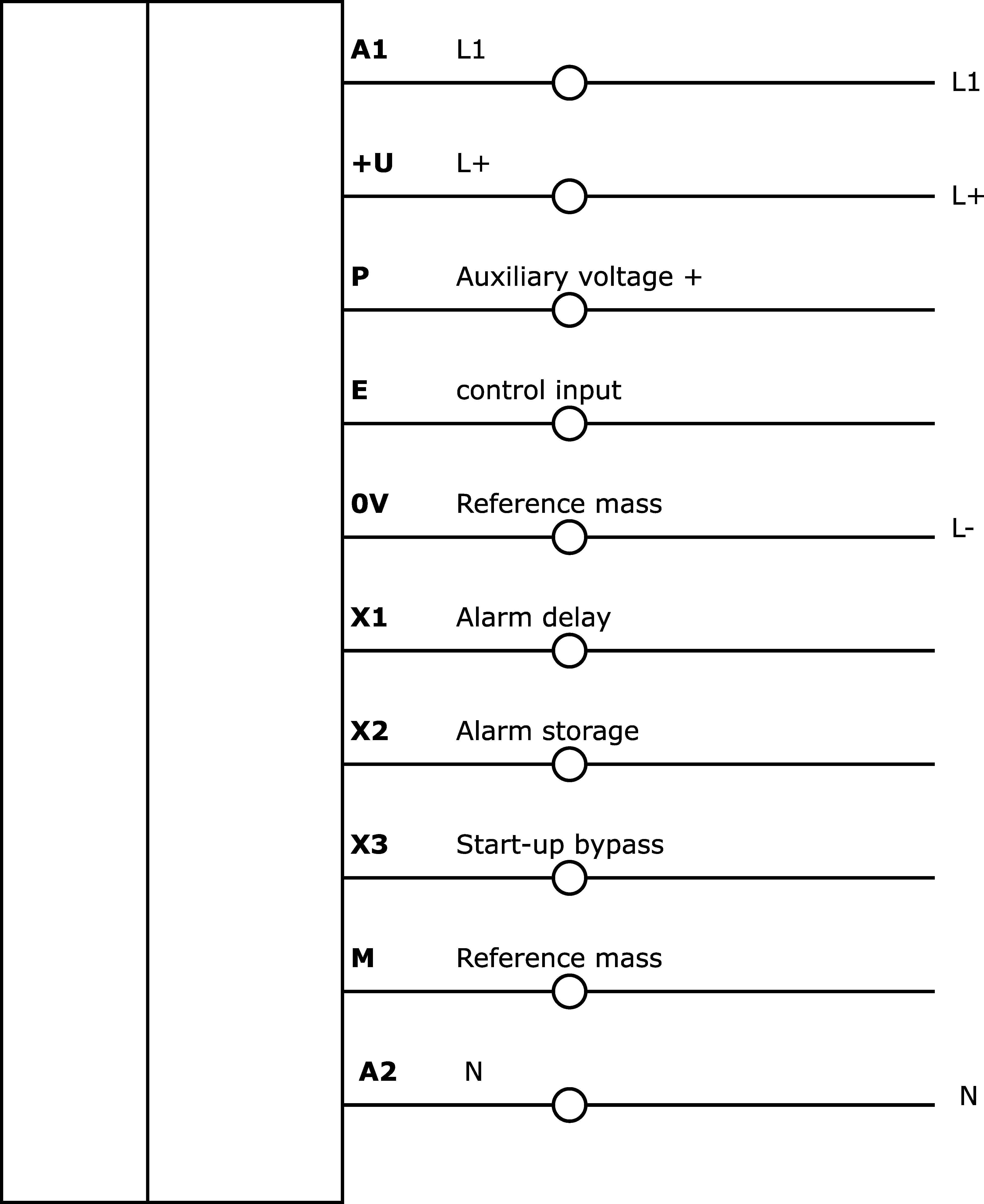

Electrical properties
- Start-up delay time
- 1 - 50s
- Number of outputs
- 2
- Number of outputs, signaling function, undelayed, with contact
- 2
- Type of switching function
- Change-over contact (NO/NC)
- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Rated switching current
- 3,000mA
- Readiness delay
- 400ms
- Operating frequency
- 1 - 20,000Hz
- Setting procedure
- Parameterization
- Transducer power supply voltage
- 24V
- Transducer power supply current
- 20mA
- Type of transducer power supply voltage
- DC
- Power consumption
- 4VA
- Minimum pulse length
- 0.02ms
- Switching voltage
- 230V
- Voltage type for actuation
- DC
- Adjustment range for revolutions per minute
- 1 - 120,000UpM
- Display
- LED display
mechanical properties
- Width
- 22.5mm
- Height
- 90mm
- Length
- 97mm
- Storage temperature
- -20 - 60°C
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- plastic
other properties
- Range of functions
- Rotational speed detection, Standstill detection
- Ambient temperature
- -20 - 60°C
- Version
- With start-up override
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27371811 |
| eClass-7.1 | 27371811 |
| eClass-8.0 | 27371811 |
| eClass-9.0 | 27371811 |
| eClass-9.1 | 27371811 |
| ETIM-6.0 | EC001448 |
| ETIM-7.0 | EC001448 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 650 monitors |
| packaging dimensions | 145 x 45 x 170mm |
| gross weight | 270g |
| Carbon footprint | 5,45kg CO₂e |
| customs tariff number | 90292038 |
| WEEE number | 40951076 |
