Measuring transducer - DIN rail mounting
BA870100
| amount | price | discount |
|---|---|---|
| 1 | 219,10 € | – |
| 5 | 212,53 € | 3% / 6,57 € |
| 10 | 208,15 € | 5% / 10,96 € |
| 20 | 201,57 € | 8% / 17,53 € |
| 50 | 192,81 € | 12% / 26,29 € |
Available
Measuring transducer, Analog / digital, 58x95x54mm, 0-10V/4-20mA / 0 … 20 mA, 18-30V DC, 4x PNP/NPN Programmable/configurable, 0-10V/4-20mA, Clamp, IP20, Plastic PC, LCD
Compare
Measuring transducer - DIN rail mounting
24V DC, 2x2 inputs, LCD display, 4 preselects, analog
Electrical properties
- Response/decay time
- 300ms
- Number of switching outputs
- 4
- Type of switching function
- Programmable/configurable
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of analog input
- 0 - 20mA, 0 - 10V, 4 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- PNP/NPN
- Turn-off delay
- 0 - 10s
- Rated switching current
- 150mA
- Digital resolution
- 12Bit
- Turn-on delay
- 0 - 10s
- Setting procedure
- Parameterization
- Transducer power supply current
- 250mA
- Type of transducer power supply voltage
- DC
- No-load current
- 70mA
- Relative measurement accuracy
- 2%
- Resistance of current input
- 50Ohm
- Resistance of voltage input
- 20kOhm
- Output functions
- Window function, Switching point, Hysteresis, Regulación estándar de la señal, valControl de dos puntos
- Display
- LCD display
- Short circuit protection, Reverse polarity protection
- Operating voltage

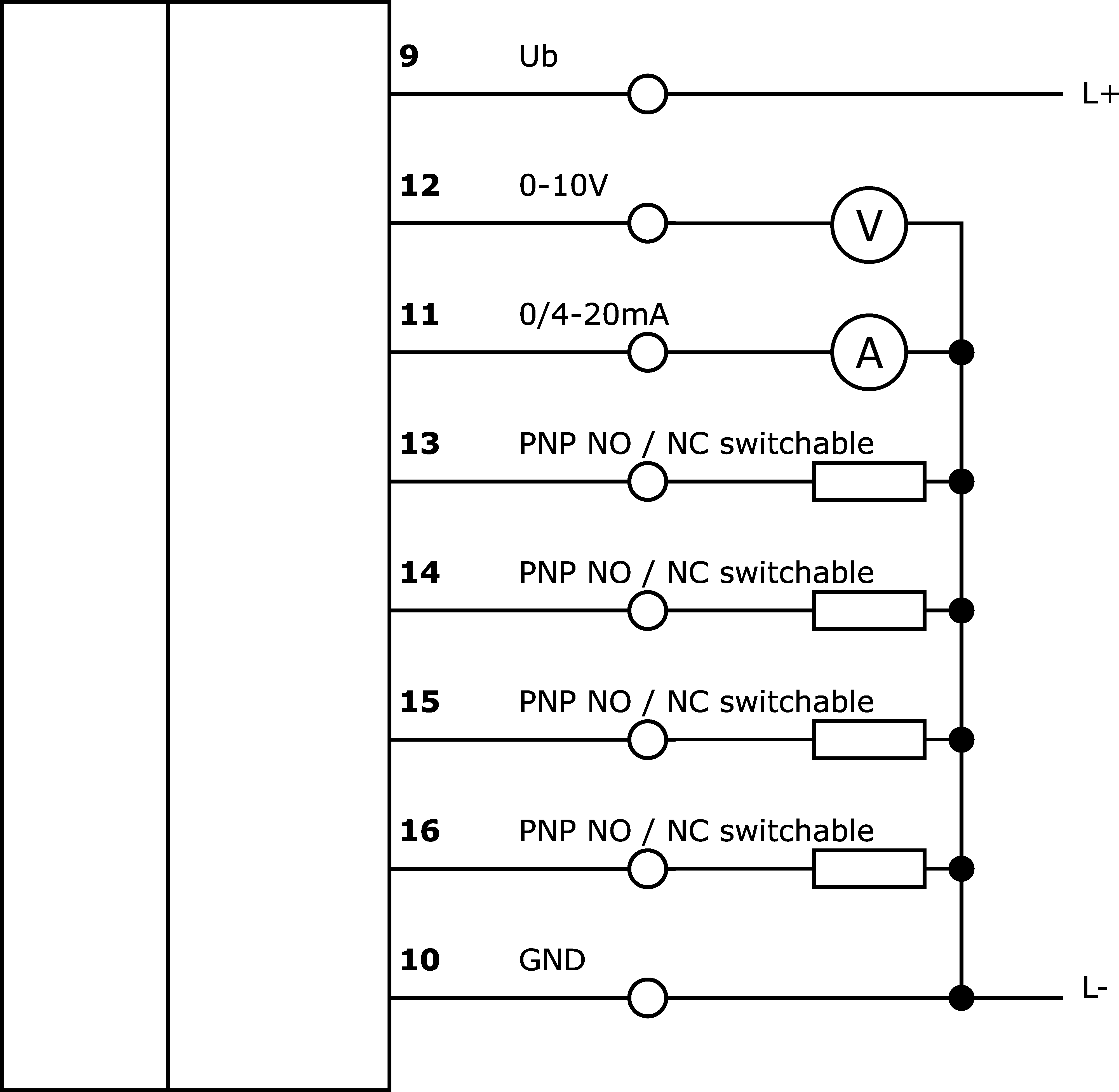

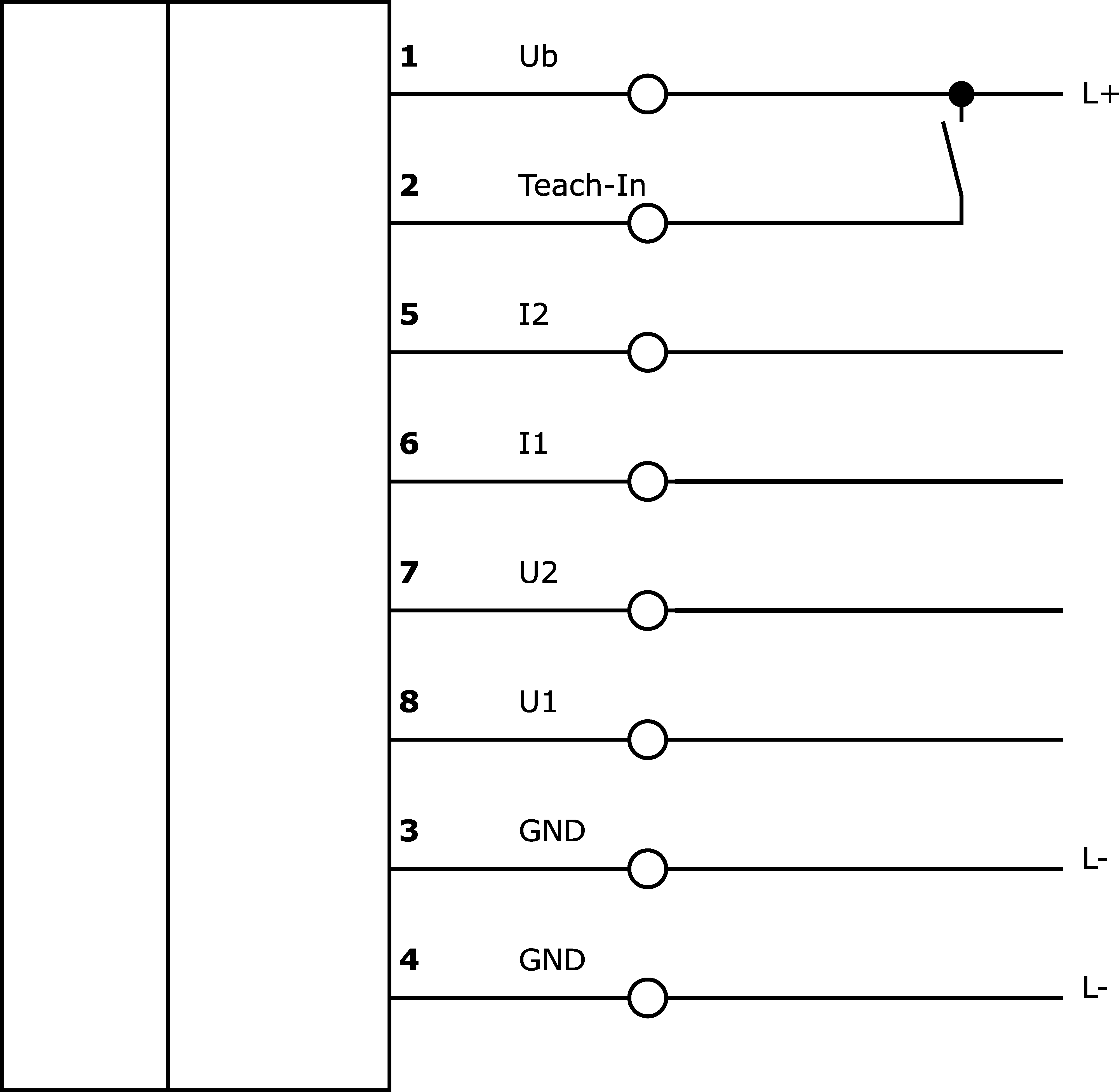

- Electrical connection
Mechanical properties
- Width
- 53.5mm
- Height
- 58mm
- Length
- 95mm
- Storage temperature
- -25 - 70°C
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic PC
- dimensions
Other properties
- Range of functions
- Ambient temperature
- -20 - 60°C
Datasheets
Manuals
-
pdfProduct operating instructionsPDF-file, 1.5 MB
-
pdfShort operating instructionsPDF-file, 219 KB
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 550 measuring transducer |
| packaging dimensions | 74 x 74 x 143mm |
| gross weight | 141g |
| 0,34kg CO₂e | |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
