Inductive sensors - Norm switching distance

IB060285

IB060285
List price
63,30 €
amount price discount
1 63,30 €
5 61,40 € 3% / 1,90 €
10 60,14 € 5% / 3,17 €
20 58,24 € 8% / 5,06 €
50 55,70 € 12% / 7,60 €
On demand

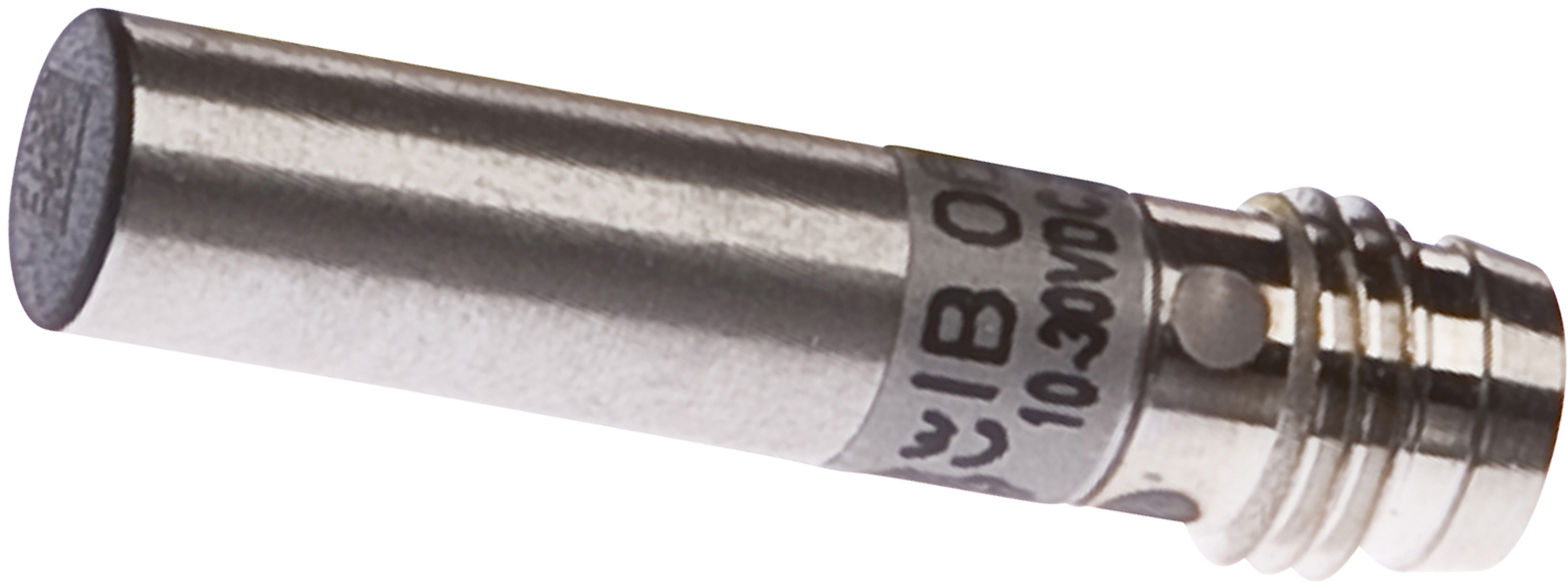

sensor inductive, Ø6,5mm 30long, Flush, Sn: 1.5, 10-30V DC, PNP NC, Connector M8 3pin, IP67, Stainless steel 1.4305
Compare

Inductive sensors - Norm switching distance

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Type of switching function
Normally closed contact (NC)
Type of electrical connection
Connector M8
Type of switching output
PNP
Rated switching current
200mA
Relative hysteresis
15%
Correction factor (aluminum)
0.3
Correction factor (copper)
0.2
Correction factor (brass)
0.4
Correction factor (St37)
1
Correction factor (stainl. steel)
0.7
Short-circuit protection
Yes
No-load current
15mA
Number of pins
3
Relative repeat accuracy
10%
Switching distance
1.5mm
Switching frequency
1,000Hz
Voltage drop
2V
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 30V
Display
LED display

Mechanical properties

Alignment of cable entry
axial
Design
Cylinder plain
Cable infeed
axial
Length
30mm
Mechanical mounting condition for sensor
flush
Degree of protection (IP)
IP67
Active area material of sensor
Plastic (PBT)
Housing material
Stainless steel 1.4305
Diameter
6.5mm

Other properties

Ambient temperature
-25 - 70°C
You can find accessories for IB060285 in these product groups:

Sensor tester

Cable sockets M8-socket with LED M8-connector 3-wire

Cable sockets M8-socket with LED M12-connector 3-wire

Timer stages M8

Fixing material design 6.5round

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M8 3-pin field-attachable

Cable sockets M8-socket M12-connector 4-wire

Adapter M8 socket 3-pin / M12 connector 3-pin

Adapter M8 socket 3-pin / M8 connector 4-pin

Logic modules M8

Power supply 24V DC / 100mA switching amplifier

Cable sockets M8 3-wire with LED

Cable sockets M8 3-wire

Protection cap, teflon M8

Cable sockets M8-socket M12-connector 3-wire

Inverters M8

Power supply 24V DC / 2 – 10A

Plunger adapter for sensors IB06

Classification Class
eClass-7.0 27270101
eClass-7.1 27270101
eClass-8.0 27270101
eClass-9.0 27270101
eClass-9.1 27270101
ETIM-6.0 EC002714
ETIM-7.0 EC002714
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 200 inductive sensors
packaging dimensions
gross weight 4g
Customs tariff number 85365019
WEEE number 40951076
