MZ070787
| amount | price | discount |
|---|---|---|
| 1 | 82,10 € | – |
| 5 | 79,64 € | 3% / 2,46 € |
| 10 | 78,00 € | 5% / 4,11 € |
| 20 | 75,53 € | 8% / 6,57 € |
| 50 | 72,25 € | 12% / 9,85 € |
Available
Sensor Magnetic, cylinder, 6.2mm T-slot, 4.3x40x6.2mm, 12-30V DC, 2x PNP NO, M8 cable connector 4-pin 0.5m PUR (polyurethane), IP67, plastic, LED, teach-in, installation from above, two switching points, position of sensor surface in middle of device
Compare
Magnetic field sensors - Sensors for T-slot
For many tasks in automation technology, it is necessary to recognize the movement processes in pneumatic and hydraulic cylinders and to precisely detect the position of the piston. This is where magnetic cylinder sensors are used, which are attached to the cylinders using adapters or directly from the outside.
Electrical properties
- Number of switching outputs
- 2
- Number of switching points
- 2
- Type of switching function
- Normally open contact (NO)

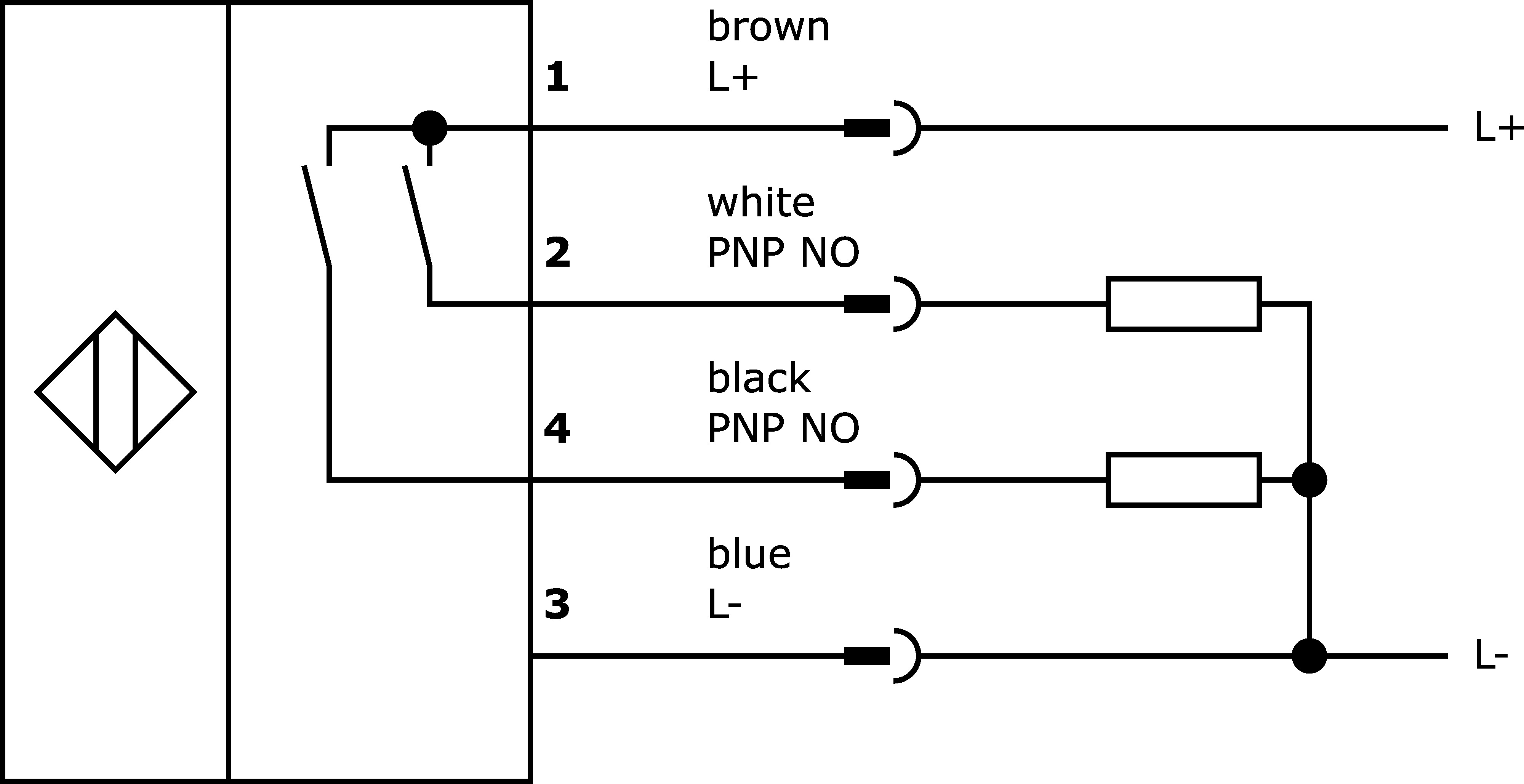

- Type of electrical connection
- Cable connector M8
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- Absolute hysteresis
- 4mm
- No-load current
- 15mA
- Number of pins
- 4
- Repeatability of teach-in devices
- 0.1mT
- Contact travel (depending on magnet / air gap)
- 50mm
- Sensor surface (active)
- Middle area
- Voltage drop
- 2.2V
- Output functions
- Switching point
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Number of cores
- 4
- Tightening torque
- 0.2Nm
- Design
- Cuboid
- Width
- 6.2mm
- Height
- 4.3mm
- Cable length
- 0.5m
- Length
- 40mm
- Sensor surface position
- Center of the device
- Mounting access, cylinder groove
- From the top
- Degree of protection (IP)
- IP67
- Housing material
- Plastic
- Material of cable sheath
Other properties
- Suitable for
- 6.2mm T-slot
- Cylinder version
- With T-groove
- Cylinder manufacturer
- Festo
- Ambient temperature
- -20 - 75°C
You can find accessories for MZ070787
in these product groups:
Assembly
Cable clip - T-groove
Fixing material for MZ07 / MZA7
Holder MZ07 for cylinder 16
Mounting clip M8 connector/socket
Available
Mounting for MZ07 /MZA7 metal
Available
Available
Available
Positive stop for MZ07
Available
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Adapter M8 socket 4-pin / M8 connector 3-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8-socket M12-connector 4-wire
Sheath
Y connection cable VK000048
Available
Other sensors
Power supply 24V DC / 100mA switching amplifier
Protection cap, teflon M8
Tool
Multifunction tool
Sensor tester
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270104 |
| eClass-7.1 | 27270104 |
| eClass-8.0 | 27270104 |
| eClass-9.0 | 27270104 |
| eClass-9.1 | 27270104 |
| ETIM-6.0 | EC002544 |
| ETIM-7.0 | EC002544 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 220 pneumatic cylinder sensors |
| packaging dimensions | 150 x 10 x 210mm |
| gross weight | 15g |
| 0,06kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
