Optical sensors - Diffuse reflection sensors with background suppression
OTQ40100
| amount | price | discount |
|---|---|---|
| 1 | 148,40 € | – |
| 5 | 143,95 € | 3% / 4,45 € |
| 10 | 140,98 € | 5% / 7,42 € |
| 20 | 136,53 € | 8% / 11,87 € |
| 50 | 130,59 € | 12% / 17,81 € |
On demand
sensor optical, diffuse-reflection sensor, 45x6,2x4mm, Sn: 30, 11-30V DC, 1x PNP/NPN Push-pull, Cable 2m PVC, IP65, Plastic ASA+PMMA, 1kHz, Polarity free red light, Point
Compare
Optical sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.5ms
- Number of switching outputs
- 1
- Type of switching function
- Normally open (NO for PNP) Normally closed (NC for NPN)

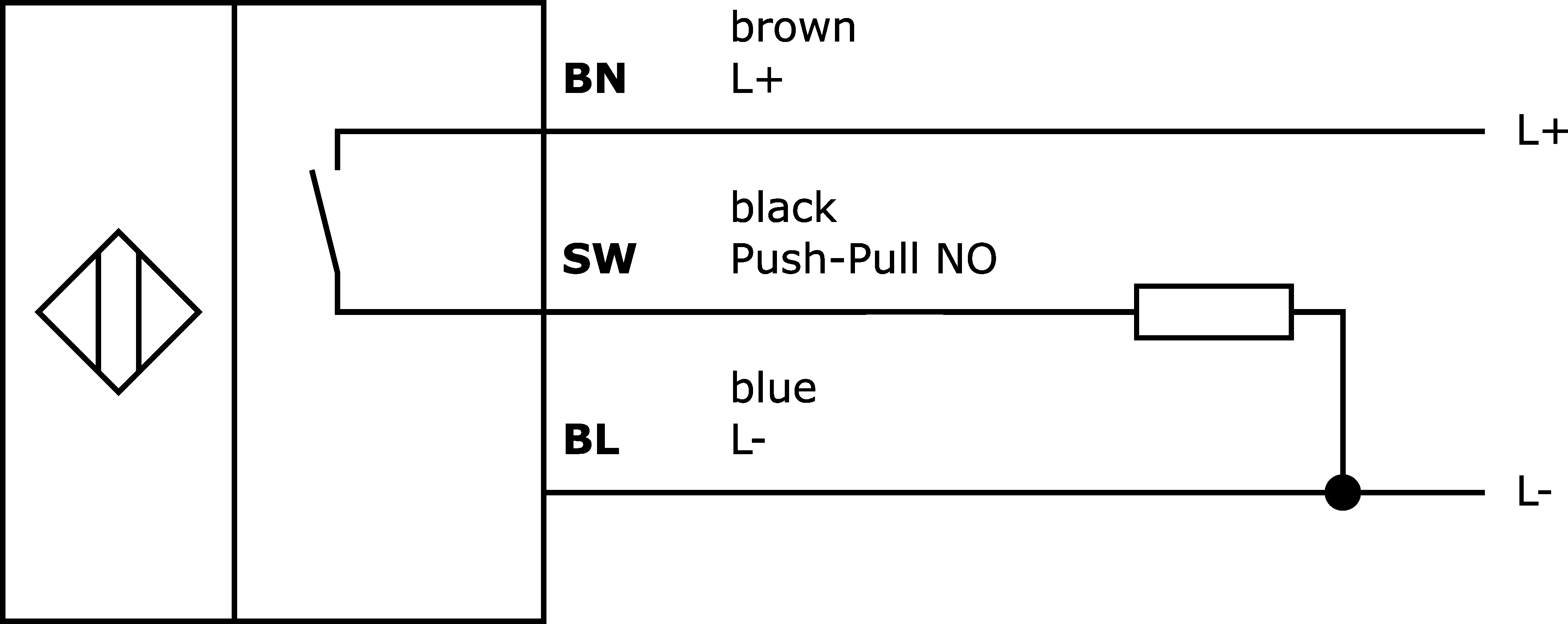

- Type of electrical connection
- Cable
- Type of switching output
- Push-pull
- Rated switching current
- 50mA
- No-load current
- 30mA
- Switching distance
- 30mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Scanning function
- Light switching
- Decay time
- 0.5ms
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Line diameter
- 2.5mm
- Conductor cross-section
- 0.1mm²
- Number of cores
- 3
- Design
- Cuboid
- Width
- 4mm
- Height
- 44.8mm
- Cable length
- 2m
- Length
- 6.2mm
- Maximum tightening torque
- 0.25Nm
- Degree of protection (IP)
- IP65
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic ASA
- Material of cable sheath
- Plastic (PVC)
Optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 660nm
- Light spot diameter at focal point
- 1mm
Other properties
- Range of functions
- Ambient temperature
- -10 - 50°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for OTQ40100
in these product groups:
Assembly
Fixing material design OTQ4
Available
Available
Mounting system for AY000116
Available
Connection technology
Cable connectors M8 3-pin field-attachable
Inverters – terminal
Logic module top hat rail
Sheath
Datasheets
Drawings
Product Compliance
-
pdfUL declaration of conformityPDF-file, 98 KB
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
-
pdfFlyer food and beveragePDF-file, 1.7 MB
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
-
pdfWhitepaper food productionPDF-file, 901 KB
-
pdfWhitepaper optical sensorsPDF-file, 658 KB
-
pdfWhitepaper miniature sensorsPDF-file, 588 KB
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E486083 |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 40g |
| 0,07kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
