Flow sensors - Sensors for water
SM430025
| amount | price | discount |
|---|---|---|
| 1 | 1.013,00 € | – |
| 5 | 982,61 € | 3% / 30,39 € |
| 10 | 962,35 € | 5% / 50,65 € |
| 20 | 931,96 € | 8% / 81,04 € |
| 50 | 891,44 € | 12% / 121,56 € |
On demand
Flow sensor, water, magnetic-inductive, 43x100x72 mm, cut-ring fitting for 15 mm OD, 24 V DC, PNP programmable/configurable, 4–20 mA, 4-pin M12 connector, PBT / PVDF, pressure resistance 10 bar
Compare
Flow sensors - Sensors for water
When an electrically conductive liquid crosses a magnetic field, a voltage dependent on the flow velocity is generated perpendicular to that magnetic field. This voltage is measured using electrodes located in the wall of the measuring tube. Microcontrollers evaluate this voltage, calculate the flow rate, and display it on the screen. An analog signal and a transistor switch output are available for further processing.
Electrical properties
- Response/decay time
- 8,000ms
- Type of switching function
- Programmable/configurable
- Type of analog output
- 4 - 20mA

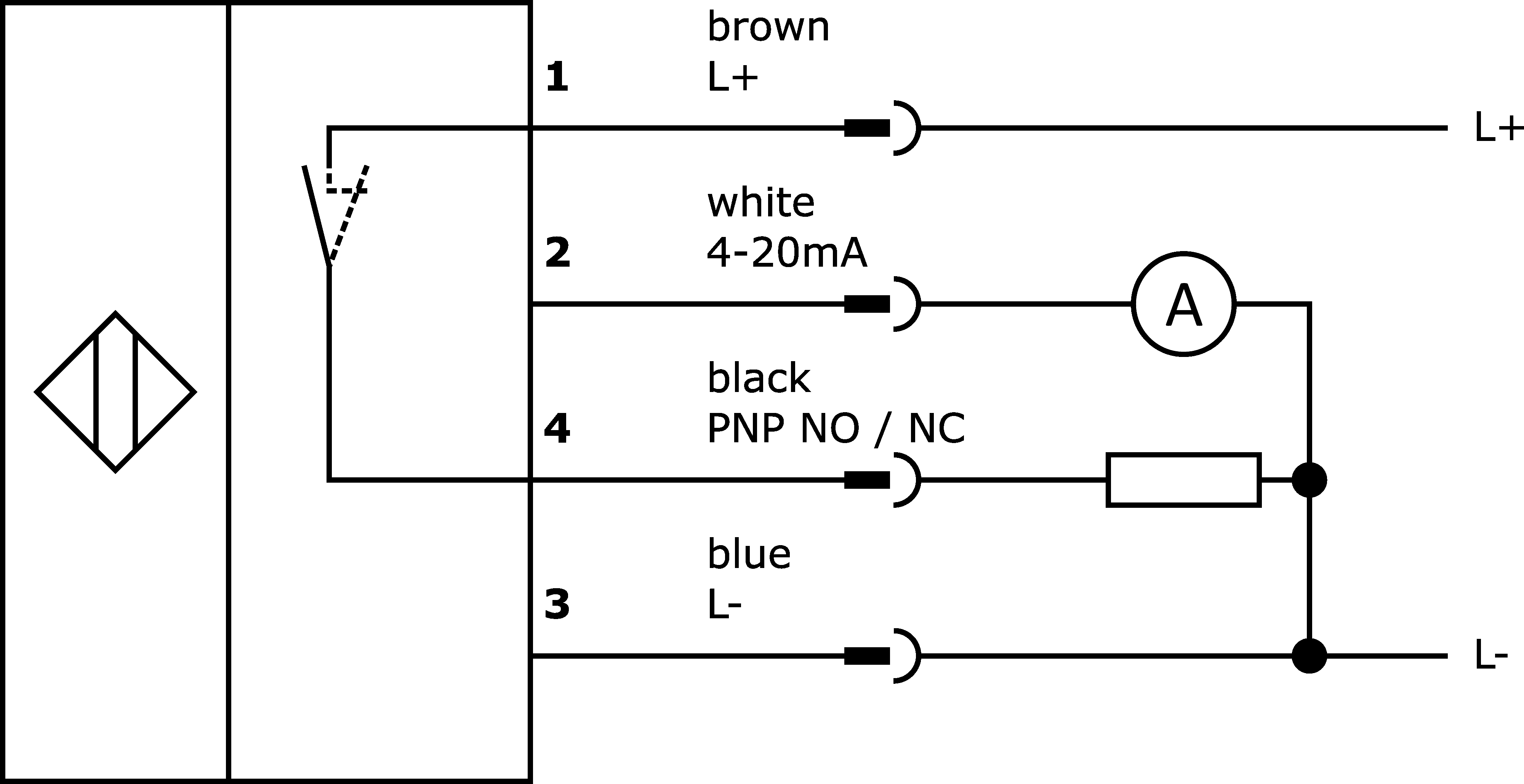

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Turn-off delay
- 0 - 50s
- Rated switching current
- 200mA
- Readiness delay
- 10ms
- No-load current
- 100mA
- Number of pins
- 4
- Measuring range of flow velocity with water
- 0.2 - 40m/s
- Measurement principle
- magnetic-inductive
- Measuring range flow velocity
- 0.2 - 40m/s
- Display
- LED display
mechanical properties
- Type of process connection
- Cutting ring fitting for OD 15mm
- Design
- Cuboid
- Width
- 72mm
- Pressure resistance
- 10bar
- Height
- 43mm
- Length
- 100mm
- Medium temperature
- 5 - 60°C
- Degree of protection (IP)
- IP65
- Housing material
- PBT / PVDF
- Sensing element material
- Stainless steel 1.4571
other properties
- Ambient temperature
- 0 - 60°C
- Reference medium / object
- Water
Datasheets
Manuals
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27371815 |
| eClass-7.1 | 27371815 |
| eClass-8.0 | 27371815 |
| eClass-9.0 | 27371815 |
| eClass-9.1 | 27371815 |
| ETIM-6.0 | EC002580 |
| ETIM-7.0 | EC002580 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 300 flow sensors |
| packaging dimensions | 138 x 95 x 210mm |
| gross weight | 800g |
| Carbon footprint | 3,28kg CO₂e |
| customs tariff number | 90261021 |
| WEEE number | 40951076 |
