VK205321
Connection cable, 2m, M12 Female (socket) 4pin Angular, Free conductor end, 4x0.34mm², PUR (Polyurethane), Ø5.5mm, 250V,…
Available
Mechanical sensors - Analog
YM120020
| amount | price | discount |
|---|---|---|
| 1 | 297,00 € | – |
| 5 | 288,09 € | 3% / 8,91 € |
| 10 | 282,15 € | 5% / 14,85 € |
| 20 | 273,24 € | 8% / 23,76 € |
| 50 | 261,36 € | 12% / 35,64 € |
Scarce
sensor mechanical, analog, M12x1 127lang, 24V DC, Sn:-5-5mm, 0-10V, M12 connector 4pin, stainless steel
including 2x Nut
Compare
Mechanical sensors - Analog
These mechanical position sensors are measuring systems that operate on the principle of the differential transformer, a special form of transformer. It consists of a primary coil and two secondary coils. The primary coil is symmetrically arranged between the secondary coils. A movable soft iron core changes the coupling factors between the coils. When it is in the center position, the arrangement is symmetrical and the resulting voltage of the secondary coils is 0. When the core is displaced, there is unequal magnetic coupling and an output voltage on the secondary coils.
With the aid of an electronic evaluation circuit, a length-proportional analog voltage signal (0 ... 10V) is generated from this; in the center position, the measurable output voltage is 5V.
The life of such a sensor is almost unlimited due to the non-contacting measuring method. In addition, the measured value is retained even in the event of interruption of the supply voltage.
Electrical properties
- Type of analog output
- 0 - 10V
- Type of electrical connection
- Connector M12
- No-load current
- 20mA
- Linearity deviation
- 0.05mm
- Number of pins
- 4
- Measurement principle
- Differential transformer
- Operating voltage (DC)
- 19.2 - 28.8V
- Measuring range
- -5 - 5mm
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 49mm
- Thread pitch
- 1mm
- Length
- 126.5mm
- Degree of protection (IP)
- IP65
- Housing material
- Stainless steel
- M12
Other properties
- Ambient temperature
- -25 - 85°C
You can find accessories for YM120020
in these product groups:
Cable sockets M12 4-wire shielded
Datasheets
Drawings
-
jpgBlueprintJPG-file, 415 KB
-
dwg2DDWG-file, 178 KB
-
stp3DSTP-file, 49 KB
-

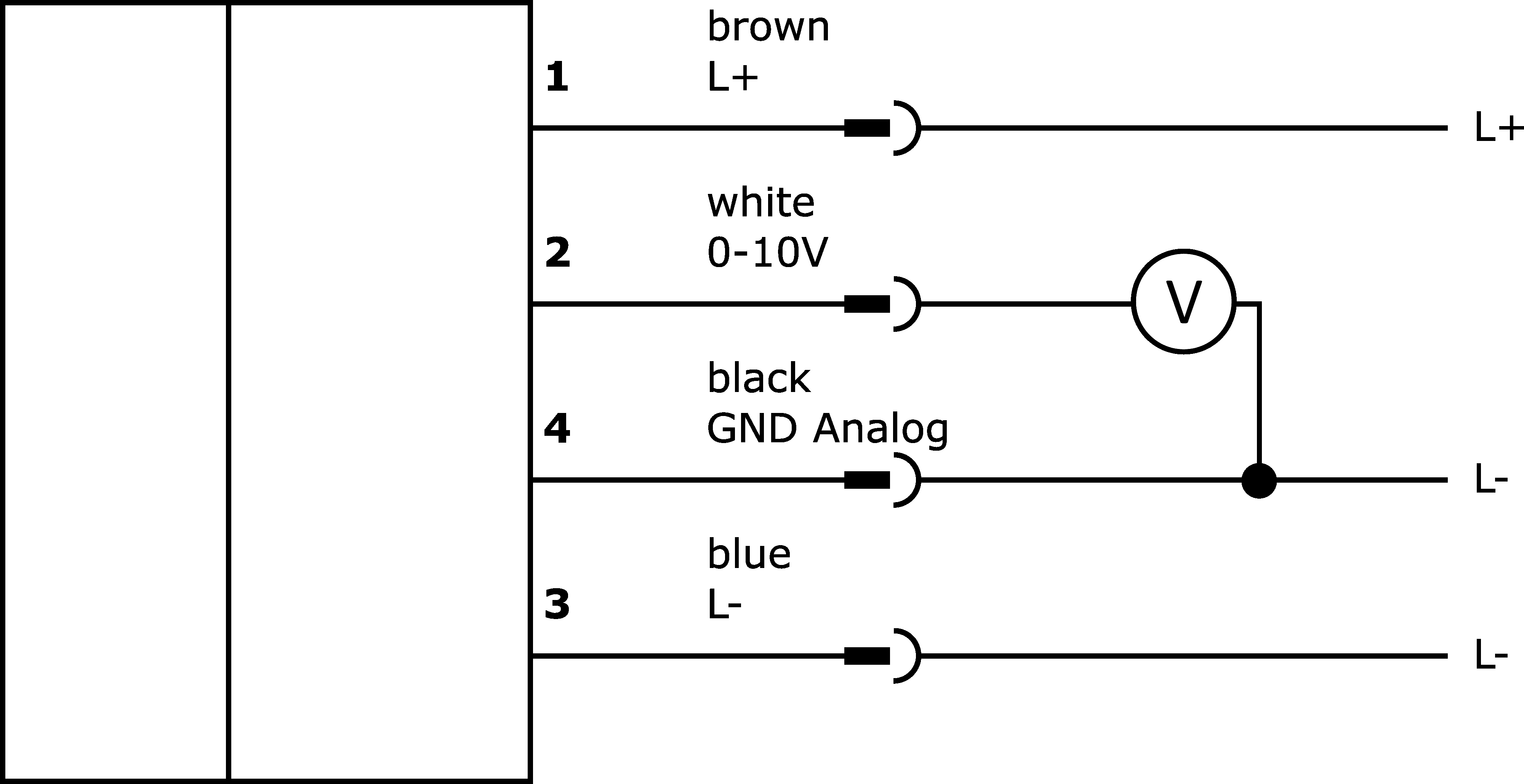

pngWiring diagram - internetPNG-file, 12 KB
