Flow sensors - Water consumption measurement
SM910021
| amount | price | discount |
|---|---|---|
| 1 | 789,70 € | – |
| 5 | 766,01 € | 3% / 23,69 € |
| 10 | 750,22 € | 5% / 39,49 € |
| 20 | 726,52 € | 8% / 63,18 € |
| 50 | 694,94 € | 12% / 94,76 € |
On demand
Flow sensor, water, magnetic-inductive, 72x68x68mm, G 3/4", 19-30V DC, push/pull programmable/configurable, 0/2-10V / 0/4-20mA, M12-connector 4pin, stainless steel 1.4404, pressure resistance 16bar, 0,2-50l/min
Compare
Flow sensors - Water consumption measurement
If an electrically conductive liquid moves across a magnetic field, a voltage is generated vertically to this magnetic field which is dependent on the flow velocity. This voltage is measured by electrodes located in the wall of the measuring tube. Microcontrollers evaluate this voltage, calculate the flow rate and show it on the display. An analog signal and a transistor switching output are available for further processing.
Electrical properties
- Number of switching outputs
- 2
- Type of switching function
- Programmable/configurable
- Type of analog output
- 0 - 10V, 0 - 20mA, 4 - 20mA, 2 - 10V

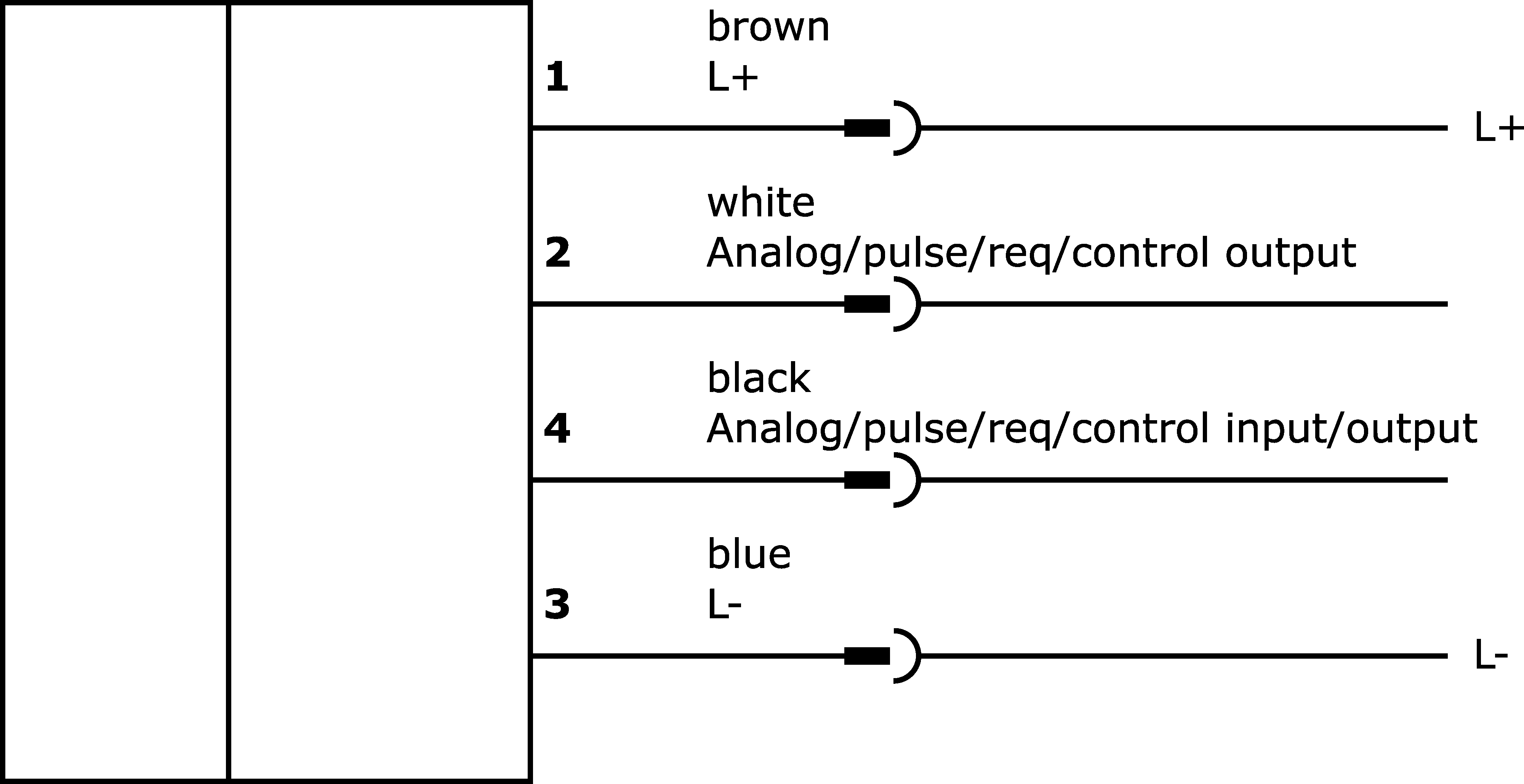

- Type of electrical connection
- Connector M12
- Type of switching output
- Push-pull
- Type of temperature sensor
- PT1000
- Rated switching current
- 200mA
- Setting procedure
- Parameterization
- No-load current
- 200mA
- Number of pins
- 4
- Relative repeat accuracy
- 0.2%
- Measurement principle
- magnetic-inductive
- Measuring accuracy of temperature
- <±2°C (flow > 0.2m/S)
- Minimum conductivity
- 20µS/cm
- Response time, flow t90 (alarm/pulse/frequency output)
- 0.1s
- Response time, flow t90 (analog output)
- 1s
- Response time, temperature t90 (signal output)
- 20s
- Measuring range flow volume
- 0.2 - 50l/min
- Display
- LED display, TFT display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Type of process connection
- G3/4 inch
- Design
- Cuboid
- Width
- 72mm
- Pressure resistance
- 16bar
- Height
- 68mm
- Length
- 68mm
- Medium temperature
- -20 - 70°C
- Degree of protection (IP)
- IP67
- Housing material
- Stainless steel 1.4404
- Sensing element material
- Stainless steel 1.4404
- Seal material at process connection
- Plastic (FKM)
- Display window material
- Plastic (PMMA)
- Inlet section
- 3 x nominal diameter
- Outlet section
- 2 x nominal diameter
- Maximum viscosity
- 70mm²/s
Other properties
- Suitable for
- Conductive liquids
- Ambient temperature
- -20 - 60°C
- Measuring accuracy
- ≤± (0.8% from measured value + 0.5% from end of measuring range)
- Reference medium / object
- Water
